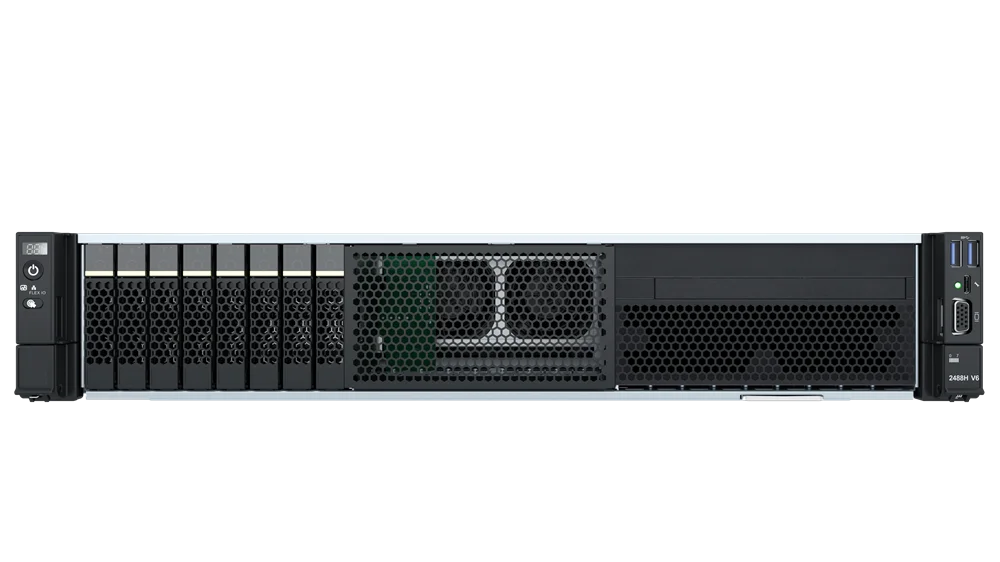

Huawei FusionServer 2488H V6 – 2U 4-Socket Ice Lake Rack Server with 48 DIMMs & Up to 25 Drives
Keywords
FusionServer 2488H V6,#FusionServer 2488H V6, Huawei rack server,#Huawei rack server, Intel Xeon Scalable Ice Lake,#Intel Xeon Scalable Ice Lake, DDR4 DIMMs,#DDR4 DIMMs, Optane PMem,#Optane PMem, NVMe SSD,#NVMe SSD, OCP 3.0,#OCP 3.0, FusionDirector,#FusionDirector, BMC Redfish,#BMC Redfish
Description
The FusionServer 2488H V6 is Huawei’s flagship 2 U, four-socket rack server designed for compute-intensive scenarios like cloud, virtualization, HPC, SAP HANA, and large-scale databases(Huawei Enterprise). It houses up to four 3rd Gen Intel® Xeon® Scalable “Ice Lake” CPUs (5300/6300/8300 series) with up to 250 W TDP each, delivering massive single-node performance in a compact footprint(XFUSION INTERNATIONAL PTE. LTD.).
Memory scales to 48 DDR4 DIMM slots at up to 3200 MT/s plus 24 Optane™ PMem 200 series slots at 2666 MT/s, yielding up to 15 TB of combined memory—ideal for in-memory analytics and virtualization(XFUSION INTERNATIONAL PTE. LTD.).
Local storage is highly configurable: front bays support 8–25 × 2.5″ SAS/SATA/NVMe drives and dual M.2 SSDs for boot, with hardware RAID 0/1/5/50/6/60 and optional supercapacitor cache backup for data protection and rapid rebuilds(XFUSION INTERNATIONAL PTE. LTD.).
Key Features
-
Quad Ice Lake CPUs: Up to four 3rd Gen Intel® Xeon® Scalable (5300/6300/8300) processors, 250 W TDP each; Intel C621A chipset(XFUSION INTERNATIONAL PTE. LTD.)
-
Massive Memory: 48 DDR4 DIMM slots @ 3200 MT/s; 24 Optane™ PMem 200 slots @ 2666 MT/s (up to 15 TB combined)(XFUSION INTERNATIONAL PTE. LTD.)
-
Flexible Storage: 8–25 × 2.5″ SAS/SATA/NVMe bays; 2 M.2 SSD boot drives; RAID 0/1/5/50/6/60; supercap cache backup(XFUSION INTERNATIONAL PTE. LTD.)
-
Expansion & Acceleration: 11 PCIe 3.0 slots (incl. 1 OCP 3.0 NIC slot); support for 2 dual-slot FHFL or 4 HHHL accelerator cards(XFUSION INTERNATIONAL PTE. LTD.)
-
Redundant Cooling & Power: 6 hot-swap counter-rotating fans (N+1); 2 hot-swap PSUs (900 W–3000 W AC Ti) in 1+1 redundancy(XFUSION INTERNATIONAL PTE. LTD.)
-
Integrated Management: BMC with Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM; agentless CD-free deployment; optional FusionDirector(XFUSION INTERNATIONAL PTE. LTD.)
-
Enterprise Security: TPM 2.0/TCM, Secure Boot, power-on & admin passwords, chassis intrusion alarm(XFUSION INTERNATIONAL PTE. LTD.)
-
Energy Efficiency: Patented DEMT technology reduces power by up to 15 %; 80 Plus Platinum PSUs(Huawei Enterprise)
Configuration
Component Specification Model FusionServer 2488H V6 (XFUSION INTERNATIONAL PTE. LTD.) Form Factor 2 U rack server (86.1 × 447 × 790 mm) Processors 2–4 × 3rd Gen Intel® Xeon® Scalable (5300/6300/8300), up to 250 W TDP Memory 48 × DDR4 DIMMs @ 3200 MT/s; 24 × Optane™ PMem 200 @ 2666 MT/s Local Storage 8–25 × 2.5″ SAS/SATA/NVMe; 2 × M.2 SSDs RAID 0/1/5/50/6/60; optional supercap for cache power-off protection; level migration; drive roaming PCIe Expansion Up to 11 PCIe 3.0 slots (incl. 1 OCP 3.0 NIC slot) Acceleration Cards 2 dual-slot FHFL or 4 single-slot HHHL heterogeneous accelerator cards Fan Modules 6 hot-swap counter-rotating fans (N+1 redundancy) Power Supplies 2 hot-swap PSUs: 900 W–3000 W AC Titanium; 1500 W HVDC; 1200 W DC; 1+1 redundancy Management BMC: Redfish, SNMP, IPMI 2.0, HTML5/VNC; Agentless; optional FusionDirector Security TPM 2.0/TCM, Secure Boot, passwords, intrusion alarm OS Support Windows Server; RHEL; SLES; CentOS; Citrix XenServer; VMware ESXi; … Operating Temperature 5 °C–45 °C (41–113 °F), ASHRAE A1–A4 compliant Certifications CE, UL, FCC, CCC, VCCI, RoHS Installation Kit Adjustable guide rails, holding rails, cable management arms Compatibility
-
Cloud & Virtualization: VMware vSphere, Microsoft Hyper-V, KVM on RHEL/SLES
(Huawei Enterprise) -
AI/HPC Acceleration: NVIDIA/AMD GPUs, Intel FPGAs, SmartNICs via PCIe and OCP 3.0 slots
(XFUSION INTERNATIONAL PTE. LTD.) -
Management & Automation: Huawei FusionDirector, iBMC, third-party DCIM via Redfish/SNMP
(Huawei Enterprise)
Usage Scenarios
-
Cloud & Virtualization
High core counts and PMem enable dense VM consolidation and in-memory workloads with SLA guarantees. -
High-Performance Computing
Multi-GPU support and DEMT-optimized power management accelerate simulations, AI training, and inference at scale. -
Big Data & Analytics
Massive NVMe tiers plus Optane PMem accelerate Spark, Hadoop, and real-time analytics with minimal I/O bottlenecks. -
Enterprise Databases & SAP HANA
Four-socket design and 15 TB memory support large in-memory databases, reducing query latencies and TCO.
Frequently Asked Questions
Q1: How many CPUs can the 2488H V6 support?
A1: It supports two or four 3rd Gen Intel® Xeon® Scalable “Ice Lake” processors (5300/6300/8300 series) up to 250 W TDP each(XFUSION INTERNATIONAL PTE. LTD.).Q2: What is the maximum memory capacity?
A2: Up to 48 DDR4 DIMMs at 3200 MT/s plus 24 Optane™ PMem 200 modules at 2666 MT/s, for a combined maximum of 15 TB(XFUSION INTERNATIONAL PTE. LTD.).Q3: Can I mix SAS, SATA, and NVMe drives?
A3: Yes—the front bays support mixed configurations of SAS, SATA, and NVMe SSDs (8–25 × 2.5″) alongside dual M.2 boot drives(XFUSION INTERNATIONAL PTE. LTD.).Q4: Which management interfaces are available?
A4: The integrated BMC supports Redfish, SNMP, IPMI 2.0, and HTML5/VNC KVM; FusionDirector adds full-lifecycle automation(Huawei Enterprise).Q5: Is the server optimized for energy efficiency?
A5: Yes—patented Dynamic Energy Management Technology (DEMT) reduces power consumption by up to 15 % without impacting performance, and 80 Plus Platinum PSUs ensure high efficiency(Huawei Enterprise). -
